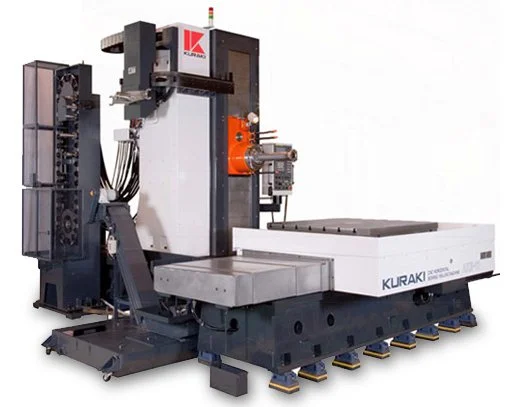

4.3" AKB-11 CNC Horizontal Boring Mill


4.3" AKB-11 CNC Horizontal Boring Mill

0.00

Column traverse type

Stroke

. X axis travel (Table longitudinal)  78.74"

. Y axis travel (Spindle vertical)     59.06"

. Z axis travel (Column cross)       59.06"

. W axis travel (Spindle axial)        19.39"

. Table top ~ spindle center0 -       59.06"

. Table center ~ spindle nose         23.62 - 82.67"

Table

. Table work space 55.12 x 62.99"

. Table maximum loading capacity14,300 lbs.

. Table auto indexing 0.001 degree (every 90 degree index by locate pin)

Spindle head

. Boring spindle diameter 4.33"

. Spindle speed (for every 1 rpm)9 - 3000 RPM

. Spindle speed change range 2 steps

. Spindle taper 7/24 taper No.50

Feed

. Rapid traverse  472.44 IPM (X, Y, Z AXES)

236.22 IPM (W AXIS)

. Feedrate  0.04-236.22 IPM

. Jog feed0.04-157.48 IPM 24 setps

. Table revolution2.0 RPM

ATC

. Tool shank CT50 (BIG PLUS)

. Pull studMAS P50T-1 (45°)

. Tool storage capacity 60 pc's

. Max. tool diameter 4.92"/9.44"

. Max. tool length15.74" Optional 34.43"

. Max. tool weight 55 lbs

. Tool selection At random
