Haas VF-2SSYT Vertical Machining Center

0.00

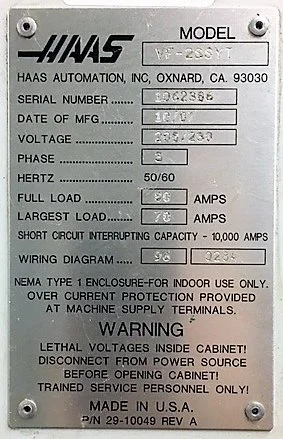

(1) USED HAAS VF-2SSYT VERTICAL MACHINING CENTER                 S/N 1062386              NEW 2007



SPECIFICATIONS:



TRAVELS

X Axis 30.0 in

Y Axis 20.0 in

Z Axis 20.0 in

Spindle Nose to Table (~ max) 24.0 in

Spindle Nose to Table (~ min) 4.0 in

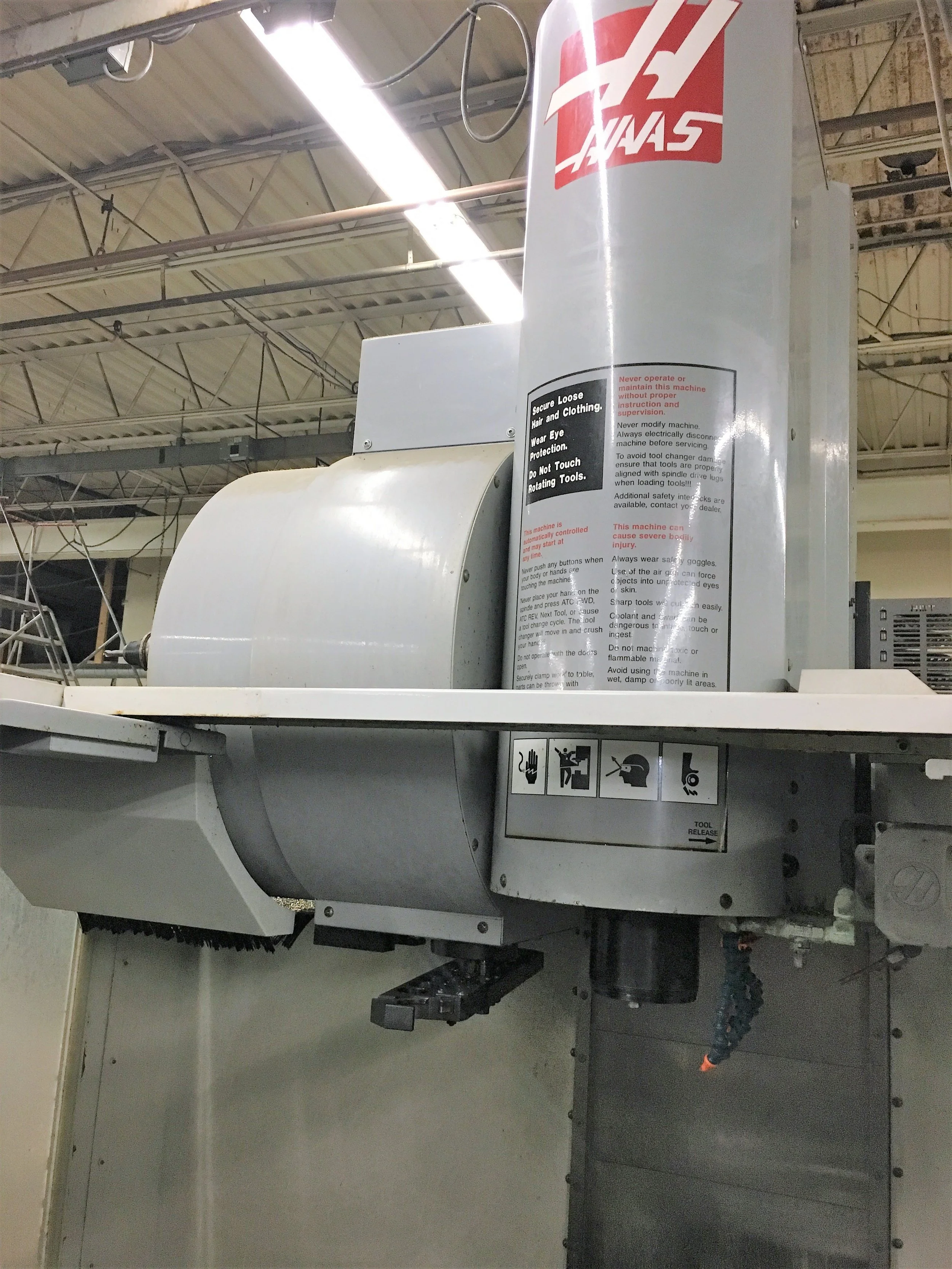

 SPINDLE

Max Rating 30.0 HP

Max Speed 12000 rpm

Max Torque 90 ft-lbf @ 2000 rpm

Drive System Inline Direct-Drive

Taper CT 40

Bearing Lubrication Air / Oil Injection

Cooling Liquid Cooled

 TABLE

Length 36.0 in

Width 18.0 in

T-Slot Width 0.630 in

T-Slot Center Distance 4.92 in

Number of Std T-Slots 3

Max Weight on Table (evenly distributed) 1500 LB

FEED RATES

Max Cutting 833 IPM

Rapids on X 1400 IPM

Rapids on Y 1400 IPM

Rapids on Z 1400 IPM

 AXIS MOTORS

Max Thrust X 1995 LBF

Max Thrust Y 1995 LBF

Max Thrust Z 3085 LBF

 TOOL CHANGER

Type SMTC

Capacity 24+1

Max Tool Diameter (full) 2.5 in

Max Tool Diameter (adjacent empty) 5.0 in

Max Tool Length (from gauge line) 11 in

Max Tool Weight 12 LB

Tool-to-Tool (average) 2.8 s

Chip-to-Chip (average) 3.6 s

 AIR SYSTEM REQUIREMENTS

Air Required 4 scfm @ 100 psi

Inline Air Hose 3/8 in

Coupler (Air) 3/8 in

Air Pressure Min 80 psi

 APPROXIMATE MEASUREMENTS

Dimensions – Approx. 102 in x 106 in x 102 in

Weight – Approx. 8100 LB

 ELECTRICS

Spindle Power 30.0 HP

Input AC Voltage (3 Phase) - Low 220 VAC

Full Load Amps (3 Phase) - Low 70 A

 EQUIPPED WITH:

High pressure through spindle coolant

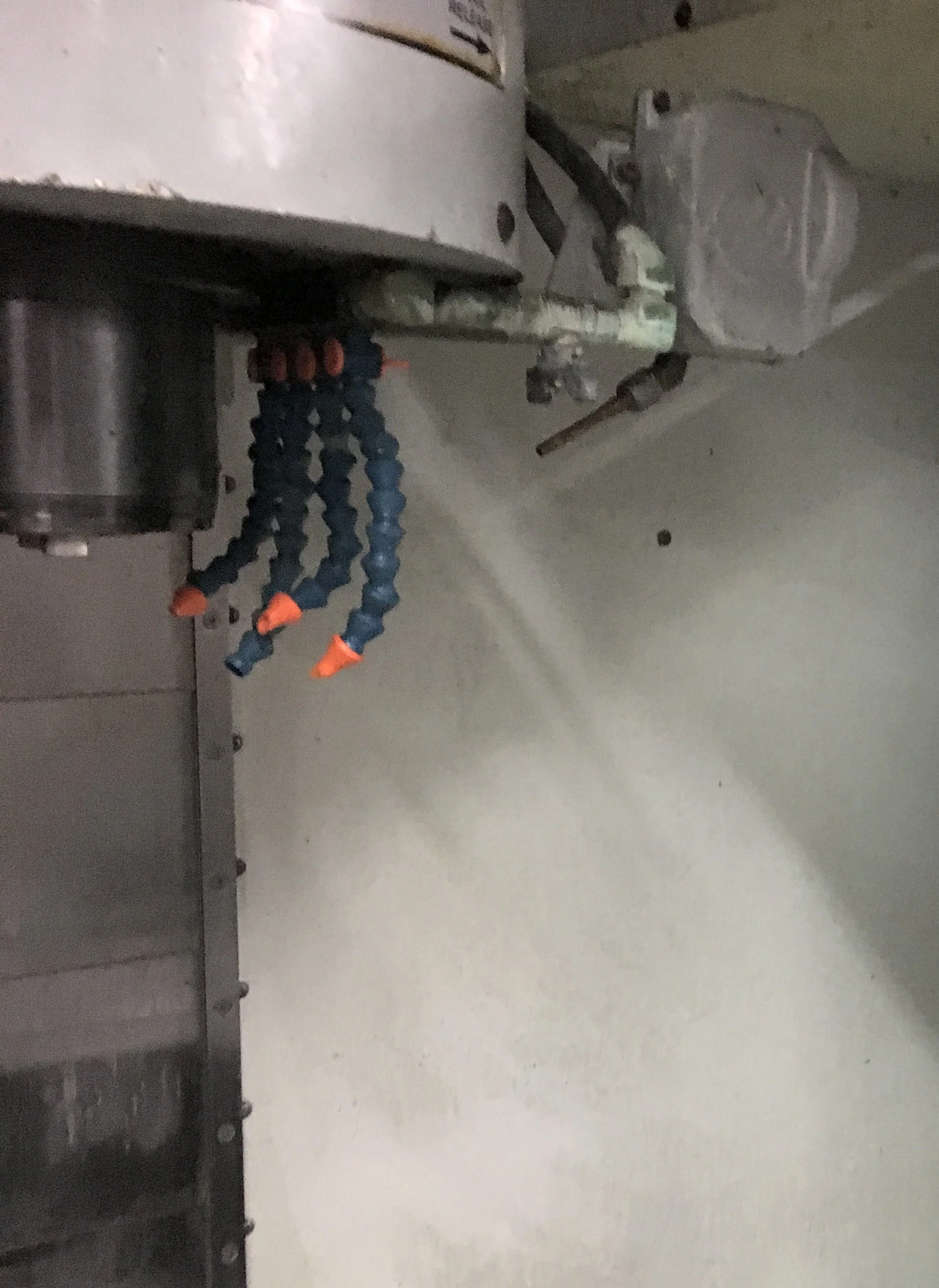

Programmable coolant nozzle

4th axis wiring

Remote manual pulse generator
