OM Omega 80 CNC Vertical Turning Center


OM Omega 80 CNC Vertical Turning Center

0.00

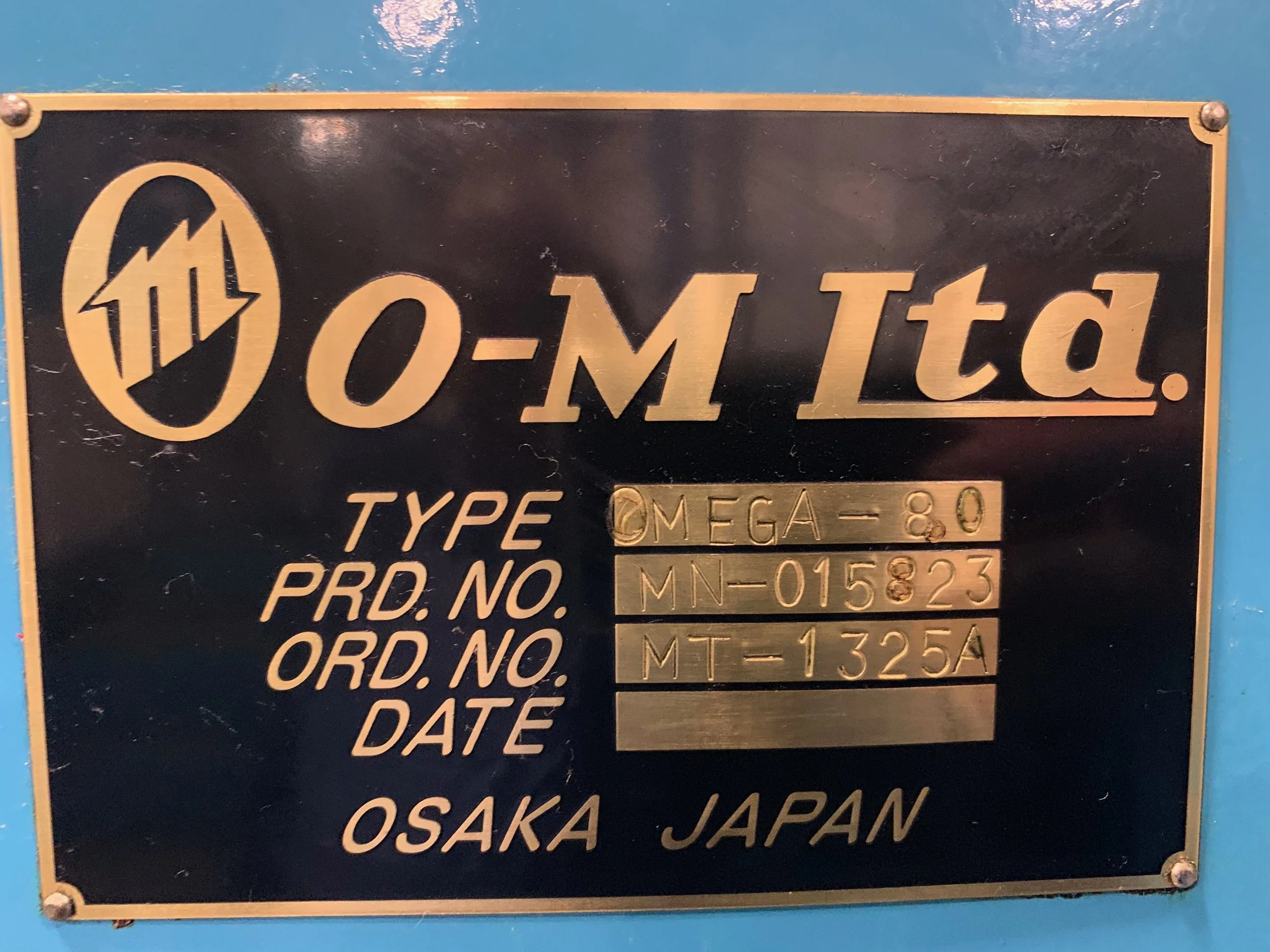

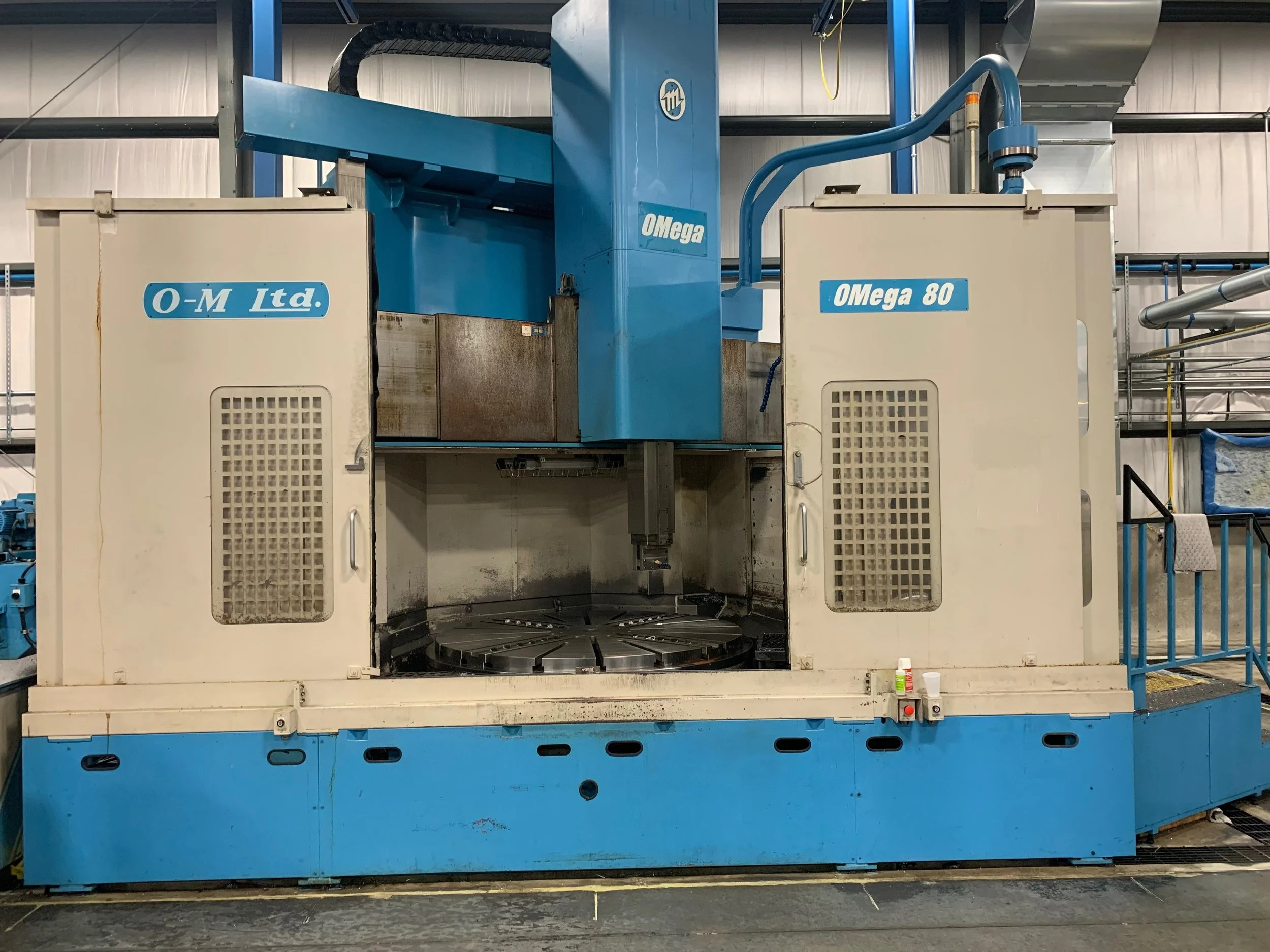

(1) Used O-M Ltd. Model OMEGA 80 CNC Vertical Turning Machine S/N 1325A       NEW 2001





SPECIFICATIONS:



q  Adjustable Cross Rail Type, with Five (5) Automatic Cross Rail Positions

q  Fanuc System CNC Controller

q  (16) Sixteen Station Automatic Tool Changer System

q  8 ¼” (210mm) Square Steel Forged Ram with 35 1/2” (900mm) Stroke

q  63" Diameter 4-Jaw Manual Ind. Chuck Table with Top Jaws

q  75 Horsepower AC Main Drive Motor

q  Telescopic Steel Covers for Cross Rail

q  Coolant System and Coolant Through the Ram

q  Chip Cover / Splash Guards





Turning Diameter: ......................................................................................................................... 78 3/4"

Swing: ............................................................................................................................................  78 3/4"

Turning Height: ..................................................................................................................................... 63"

Vertical Ram Travel: ..................................................................................................................... 35 1/2"

Maximum Torque: ............................................................................................................. 14,750 lbs.-ft.

Horizontal Ram Travel from Part Center:......................................................................... -4.0” – 61 ¾”

Maximum Cutting Force:......................................................................................................... 7,868 lbs.

Automatic 2-Range, Table Speeds: ............................................................................ 1.6 to 320 RPM

Main Motor:................................................................................................................................. 75/60 HP

Electrics:..................................................................................................................... 208/3/60; 120 KVA

Rapid Traverse Rates (x/z): .............................................................................................. 472/393 IPM

Maximum Weight of Workpiece (Table Load): .................................................................  22,000 lbs.

Net Weight of the Machine: .................................................................................................  41,890 lbs.

Dimensions:.............................................................................................................. 170” x 249” x 206”h





EQUIPPED WITH:



All available tooling

All available manuals
